Discover Ceiling Cassette Air Conditioning: The Invisible Comfort Solution

Ceiling cassette air conditioners represent a sophisticated category within split system air conditioning technology. Characterized by their unique installation method, the indoor unit, or 'cassette', is mounted within the ceiling cavity, often integrating into a suspended or false ceiling structure. Like all split systems, a cassette AC consists of this indoor unit and a separate outdoor unit housing the compressor and condenser, connected by refrigerant lines and electrical wiring concealed within the building structure.

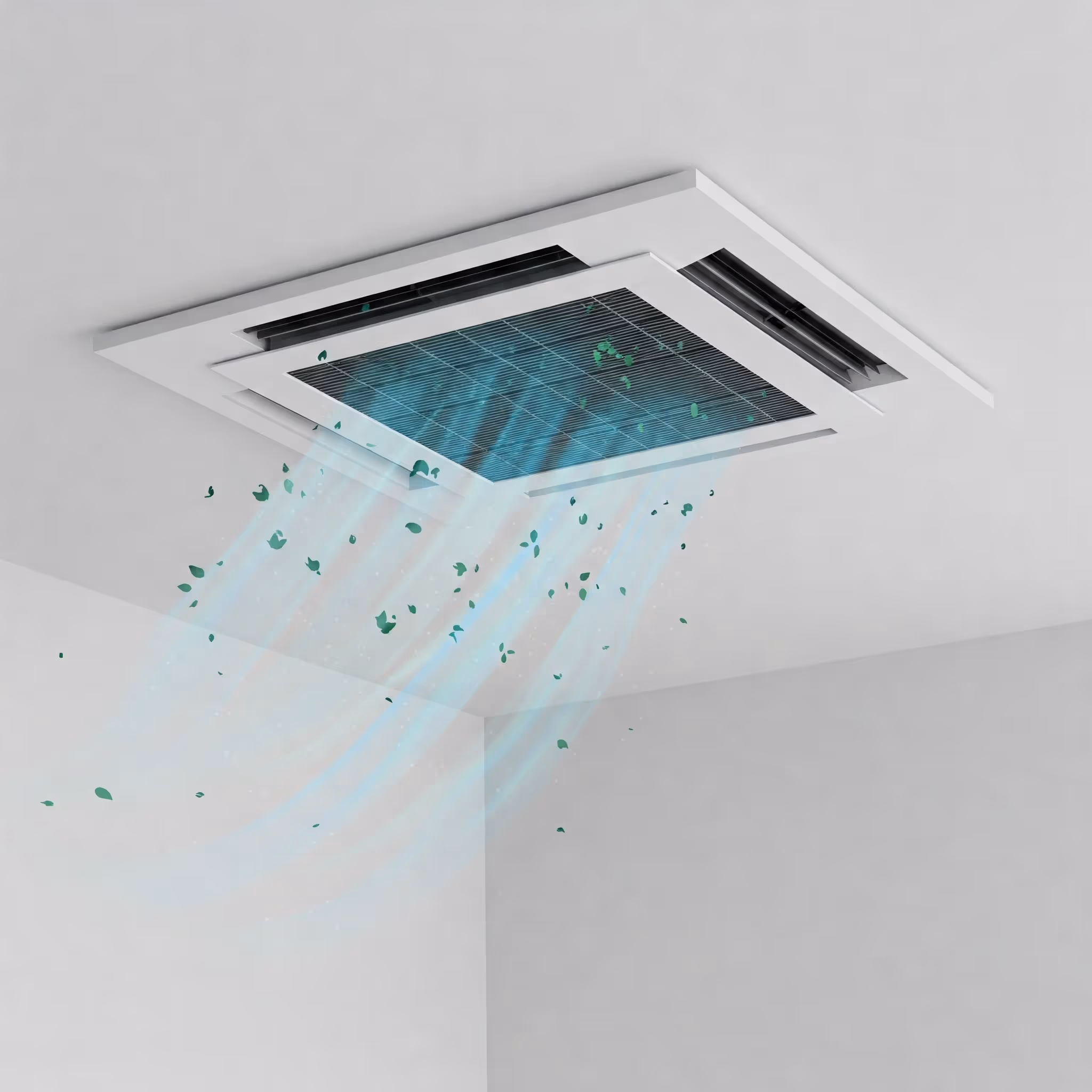

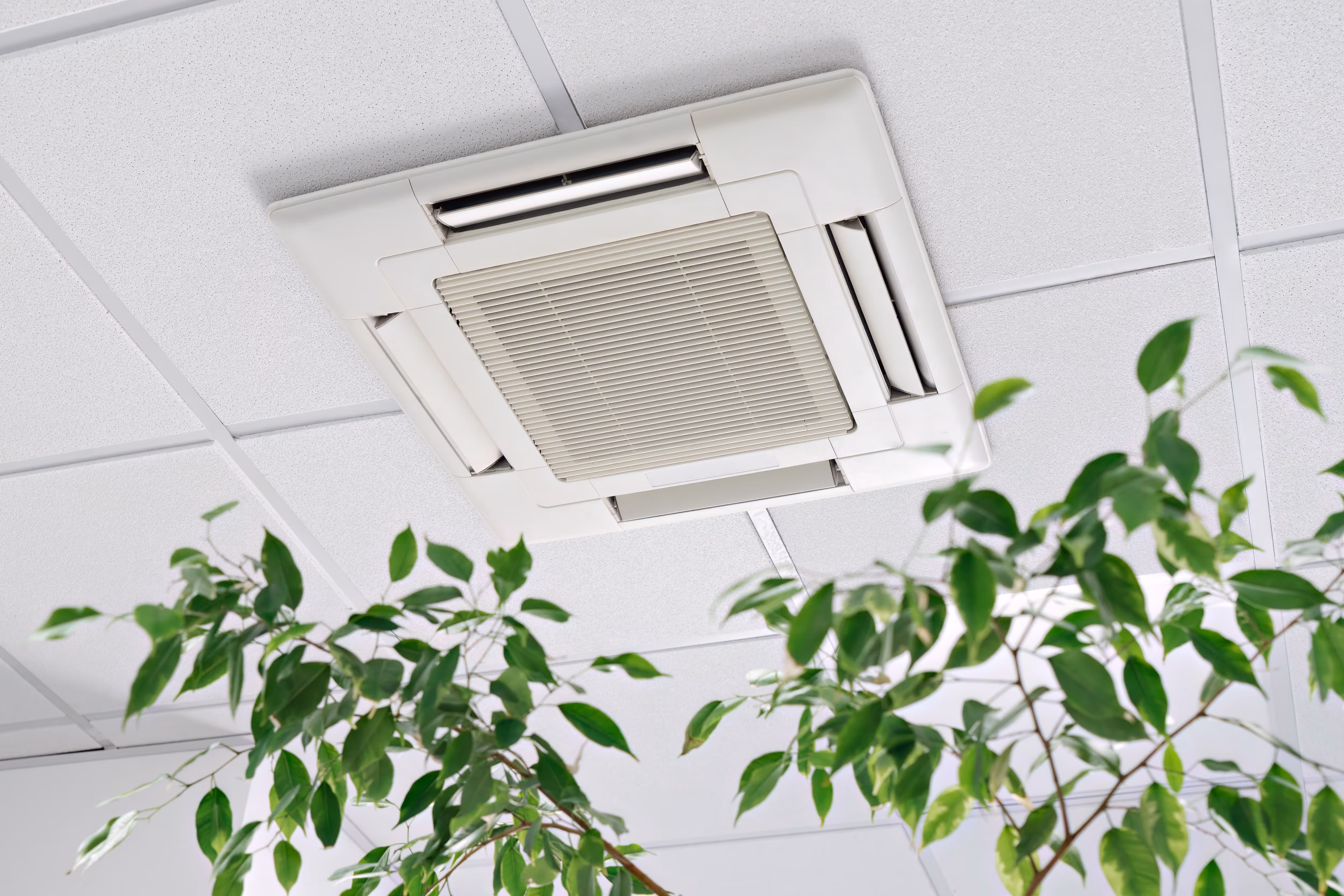

The defining visual characteristic of a cassette system is its minimal intrusion into the occupied space. Once installed, only a flat, typically square or circular, grille panel is visible on the ceiling surface. This unobtrusive design is a significant departure from traditional wall-mounted split systems, offering a clean aesthetic and freeing up valuable wall space. Capable of providing both cooling and heating (often referred to as reverse cycle operation), cassette units offer versatile, year-round climate control for a variety of applications.

How Do Cassette Units Keep You Comfortable?

The operational principle of a cassette air conditioner leverages its ceiling position for optimal air management. The process begins as the indoor unit draws warm ambient air from the room upwards through a central intake grille located on the visible panel. This air then passes over specialized coils (evaporator coils in cooling mode) within the concealed main body of the unit. These coils contain circulating refrigerant which absorbs heat from the air, effectively cooling it (or releases heat into the air during heating mode).

The conditioned air, now cooled or heated to the desired temperature, is then gently propelled back into the room through multiple discharge louvers or vents positioned around the perimeter of the ceiling grille. Most standard units feature four-way discharge, directing air outwards towards the corners of the room. Some advanced models offer circular or 360-degree airflow patterns for even broader, more uniform coverage. The outdoor unit works concurrently, releasing the absorbed heat into the outside atmosphere during cooling (or extracting heat from the outside air during heating). A key installation feature is that these systems typically do not require extensive ductwork connecting to the indoor cassette unit itself, simplifying installation compared to fully ducted central air systems.

Why Choose a Cassette Air Conditioner? Key Advantages

Cassette air conditioning systems offer a compelling combination of aesthetic integration, superior performance, and quiet operation, making them an attractive choice for specific applications.

Seamless Integration & Space Saving

One of the most significant advantages of cassette AC units is their ability to blend almost invisibly into a room's design. By mounting flush with the ceiling, the main body of the unit remains hidden from view, leaving only the low-profile grille exposed. This discreet appearance preserves the clean lines of walls and ceilings, making them exceptionally well-suited for modern, minimalist interiors, architecturally sensitive spaces, or commercial environments like retail stores and upscale restaurants where maintaining a specific aesthetic is crucial. Furthermore, this ceiling placement frees up valuable wall space that would otherwise be occupied by a traditional wall-mounted unit, allowing for greater flexibility in furniture arrangement, artwork display, or the placement of essential fixtures like shelving in retail settings.

Unmatched Airflow & Consistent Comfort

The ceiling-mounted position enables a distinct advantage in air distribution. Most cassette units feature four-way airflow, projecting conditioned air outwards in multiple directions simultaneously. Advanced models may offer circular flow (360-degree) or allow for individual louver control to customize airflow patterns. This multi-directional delivery ensures that conditioned air reaches across a wider area and penetrates further into the room compared to the single-direction throw of most wall units. The result is remarkably even temperature distribution throughout the space, effectively eliminating uncomfortable hot or cold spots and maintaining consistent comfort for all occupants. This makes cassettes particularly effective in large open-plan areas, irregularly shaped rooms, or spaces with potential airflow obstructions where achieving uniform temperature can be challenging.

Powerful & Energy Efficient Performance

Cassette air conditioners are often engineered with higher cooling and heating capacities compared to standard residential wall-mounted units. This increased power makes them well-equipped to handle the climate control demands of larger volumes, such as spacious living areas, commercial offices, shops, and restaurants. Despite their power, modern cassette systems can achieve high levels of energy efficiency. Many units incorporate inverter technology, which allows the compressor to intelligently adjust its speed based on cooling or heating demand, rather than simply switching on and off. This modulation significantly reduces energy consumption, particularly under partial load conditions. Additionally, features like programmable thermostats, timers, and sophisticated sensors (such as occupancy sensors that adjust operation when a room is empty) further optimize performance and contribute to potential savings on energy bills.

Whisper-Quiet Indoor Operation

A significant benefit, especially in occupied spaces, is the quiet operation of the indoor cassette unit. The primary source of noise in any split air conditioning system is the compressor and condenser fan, which are housed in the outdoor unit. By locating these components outside the building, the indoor environment remains peaceful and free from distracting operational noise. This makes cassette systems an excellent choice for noise-sensitive applications such as offices, conference rooms, libraries, classrooms, healthcare settings, and even bedrooms in suitably constructed homes.

Modern Features & Air Quality

Beyond core heating and cooling, many cassette air conditioners come equipped with features designed to enhance convenience and improve indoor air quality. Standard features often include wireless remote controls and programmable timers. More advanced models may offer smart connectivity for control via smartphone apps, integration with building management systems, or specialized modes like 'sleep' settings. Air quality is addressed through built-in filters designed to capture airborne dust, pollen, and other particulates. Some systems offer enhanced filtration capabilities, fresh air intake options to introduce outside air, or even dedicated air purification functions to remove finer particles, germs, and odors, contributing to a healthier indoor environment.

Perfect Placement: Ideal Uses for Cassette ACs

The unique characteristics of cassette air conditioners make them particularly well-suited for certain environments, predominantly in the commercial sector, but also in specific residential scenarios.

Their prevalence in commercial settings is driven by their ability to efficiently manage climate control in large, open, or high-traffic areas while maintaining an unobtrusive appearance. Common applications include:

• Offices: Especially open-plan layouts where even air distribution and quiet operation are crucial for productivity.
• Retail Stores & Showrooms: Where preserving wall space for displays and maintaining an appealing aesthetic is important.
• Restaurants & Cafes: Providing consistent comfort for diners without visually cluttering the space.
• Hotels: Lobbies, conference rooms, and function areas.
• Educational Institutions & Healthcare Facilities: Classrooms, lecture halls, waiting areas requiring quiet, consistent temperature control.
• Supermarkets, Gyms, and other large public spaces.

In the residential market, cassette air conditioners are a more niche solution, typically chosen when specific conditions or priorities align with their strengths. They are an excellent option for:

• Large, Open-Plan Living Areas: Where a single wall unit might struggle to provide even coverage.
• Rooms with High Ceilings: Where ceiling placement can optimize air circulation.
• Spaces with Limited Wall Space: Such as kitchens with extensive cabinetry or rooms with large windows.
• Homes Where Aesthetics are Paramount: For homeowners seeking the most discreet air conditioning solution available.

It's important to note that for standard-sized bedrooms or smaller, individual rooms in a home, a traditional wall-mounted split system is often a more cost-effective and simpler installation choice.

Cassette AC vs. Other Options: A Quick Comparison

Choosing the right air conditioning system involves comparing different technologies. Cassette units are most frequently compared against wall-mounted split systems and fully ducted systems.

Cassette AC vs. Wall-Mounted AC: This is the most common comparison, as both are types of split systems. The key differences lie in the indoor unit's placement and its resulting impact on aesthetics and airflow.

Feature	Cassette AC	Wall-Mounted AC
Installation Location	Ceiling (Recessed)	Upper Wall
Aesthetics/Visibility	Discreet Grille Only	Visible Indoor Unit
Air Distribution	Multi-directional (e.g., 4-way, 360°)	Primarily Forward/Single Direction
Space Usage	Saves Wall Space	Requires Wall Space
Ideal Room Size	Larger / Open Plan / Irregular	Small / Medium / Standard Rooms
Installation Complexity	Higher (Requires Ceiling Access/Void)	Lower (Simpler Wall Mounting)
Initial Cost Indication	Generally Higher	Generally Lower

Cassette AC vs. Ducted Systems: Ducted systems also utilize concealed components, but rely on a network of ducts running through the ceiling or floor voids to deliver air via vents to multiple rooms from a central indoor unit. Cassette systems typically cool/heat a single large zone per unit and do not require this extensive ductwork for the indoor unit itself. While a ducted system can provide whole-home climate control from one system, achieving this with cassettes would require multiple indoor units. Maintenance for cassettes involves accessing the unit grille, whereas ducted systems require duct cleaning in addition to servicing the central unit.

Is a Cassette System the Right Choice for Your Space?

While offering significant benefits, cassette air conditioners are not universally applicable. Several key factors must be considered before deciding if this system is the optimal solution for a specific space:

• Ceiling Structure and Space: This is the most critical prerequisite. Installation requires sufficient void space above the ceiling (typically a suspended or false ceiling) to accommodate the main body of the indoor unit. Without adequate clearance, installation may be impossible or require costly structural modifications.
• Budget: Cassette air conditioners generally have a higher upfront purchase price compared to equivalent capacity wall-mounted split systems. Installation costs can also be higher due to the added complexity of ceiling work. While energy efficiency can lead to long-term savings, the initial investment is greater.
• Application Needs: As detailed previously, cassettes excel in large, open areas or where maintaining clear walls and a discreet appearance is a high priority. For smaller, standard rooms, the benefits may not outweigh the additional cost and complexity compared to a wall unit.
• Maintenance Access: While routine filter cleaning is generally straightforward via the accessible grille , more involved servicing or repairs may require access to the unit within the ceiling void. Ensuring practical access for future maintenance is an important installation consideration.

If a space meets the structural requirements and the application aligns with the strengths of a cassette system (large area cooling, aesthetic priority, quiet operation needs), it represents an excellent, high-performance climate control solution.

Expert Installation & Service for Optimal Performance

Achieving the full benefits of a cassette air conditioning system – its efficiency, quietness, and longevity – hinges critically on correct installation. Due to the complexities involved in working within ceiling structures, integrating the unit seamlessly, and properly connecting the indoor and outdoor components, professional installation by certified HVAC technicians is essential. Improper installation can lead to reduced performance, inefficiency, potential water drainage issues, and even shorten the lifespan of the unit.

Regular maintenance is also key to ensuring your system operates effectively for years to come. This typically involves periodic cleaning or replacement of the air filters accessible through the grille, and annual inspections by a qualified technician to check refrigerant levels, electrical connections, drainage systems, and overall unit health.

Ready to explore if a sophisticated and discreet cassette air conditioner is the right fit for your home or business? Contact our team of climate control specialists today. We provide expert consultations to assess your space, recommend the ideal system, and deliver seamless, professional installation backed by reliable service and maintenance plans. Ensure your comfort with an expertly installed cassette air conditioning system.
