Diving Deeper into Air Cooled Air Conditioning

Air Cooled Air Conditioning (AC) systems are a cornerstone of modern comfort, providing effective cooling for a wide range of spaces by removing heat and humidity from indoor air. These systems don't create cold but rather transfer heat energy from inside a building to the outside environment. The defining characteristic is their use of ambient outdoor air, moved by fans across condenser coils, to dissipate this collected heat. This process relies on a closed-loop refrigeration cycle and several key components working in concert.

The Refrigeration Cycle in Detail

The magic behind air conditioning lies in the refrigeration cycle, which leverages the physical properties of a specialized fluid called a refrigerant. This cycle efficiently moves heat by manipulating the refrigerant's pressure and temperature, causing it to change between liquid and gaseous states. Heat is absorbed when the refrigerant evaporates (liquid to gas) and released when it condenses (gas to liquid).

• Compression: The cycle starts with the compressor pressurizing the low-pressure, cool refrigerant gas, significantly increasing its temperature and pressure. This prepares the refrigerant to release heat.
• Condensation: This hot, high-pressure gas flows into the condenser coil (usually in the outdoor unit). Fans blow ambient air across the coils. Since the refrigerant is hotter than the outside air, it releases heat, cools down, and condenses into a high-pressure liquid.
• Expansion: The high-pressure liquid refrigerant travels to the expansion valve, which drastically reduces its pressure. This rapid pressure drop causes the refrigerant to become extremely cold, partially flashing into a vapor.
• Evaporation: The cold, low-pressure refrigerant mixture enters the evaporator coil (in the indoor unit). Indoor air is blown across these coils. The refrigerant absorbs heat from the air, cooling the air down. This heat absorption causes the remaining liquid refrigerant to boil and fully evaporate back into a low-pressure gas, which then returns to the compressor to repeat the cycle.

Key Components and Their Roles

Several essential components facilitate the refrigeration cycle:

• Compressor: Often called the "heart" of the system, this pump pressurizes the refrigerant gas, increasing its temperature and driving circulation through the loop. It consumes significant energy.
• Condenser Coil & Fan (Outdoor Unit): The coil provides the surface area for the hot refrigerant gas to release heat to the outside air. The fan moves ambient air across the coils to facilitate this heat transfer, allowing the refrigerant to condense into a liquid.
• Evaporator Coil & Fan (Indoor Unit): The coil contains the cold refrigerant that absorbs heat from the indoor air blown across it by the fan. This cools the air that is then circulated back into the space. It also helps dehumidify the air as moisture condenses on the cold coil.
• Expansion Valve (or Metering Device): Creates a pressure drop, rapidly cooling the liquid refrigerant before it enters the evaporator, controlling the flow.
• Refrigerant: The working fluid that continuously circulates, absorbing heat in the evaporator and releasing it in the condenser by changing state. Common types include R-410A.
• Thermostat: The control center that monitors the indoor temperature and signals the AC system to turn on or off to maintain the desired setting.
• Air Filter: Located in the indoor unit, it traps dust and particles from the air before it passes over the evaporator coil, protecting the equipment and improving indoor air quality.

Air Cooled vs. Water Cooled: Key Differences

While air-cooled systems are common, water-cooled systems exist, primarily for larger applications. Understanding their trade-offs is useful:

Air-Cooled Advantages:

• Simpler Installation: No need for cooling towers, extensive water piping, or water pumps, often resulting in lower installation costs.
• Lower Maintenance: Avoids issues common to water systems like scaling, fouling, corrosion, and the need for water treatment chemicals.
• No Water Consumption: Ideal for areas with water scarcity or high water costs.
• Flexible Placement: Can often be installed on rooftops or in areas with limited space, as they only need access to ambient air.

Air-Cooled Disadvantages:

• Lower Efficiency: Generally less energy-efficient than water-cooled systems, especially in very hot climates, leading to potentially higher operating costs.
• Ambient Temperature Sensitivity: Performance can decrease as outdoor air temperature rises, reducing the system's ability to reject heat effectively.
• Noise: The large outdoor fans can generate more noise compared to water-cooled alternatives.

Installation and Maintenance Considerations

Proper installation and regular maintenance are crucial for the efficiency and longevity of any air-cooled AC system.

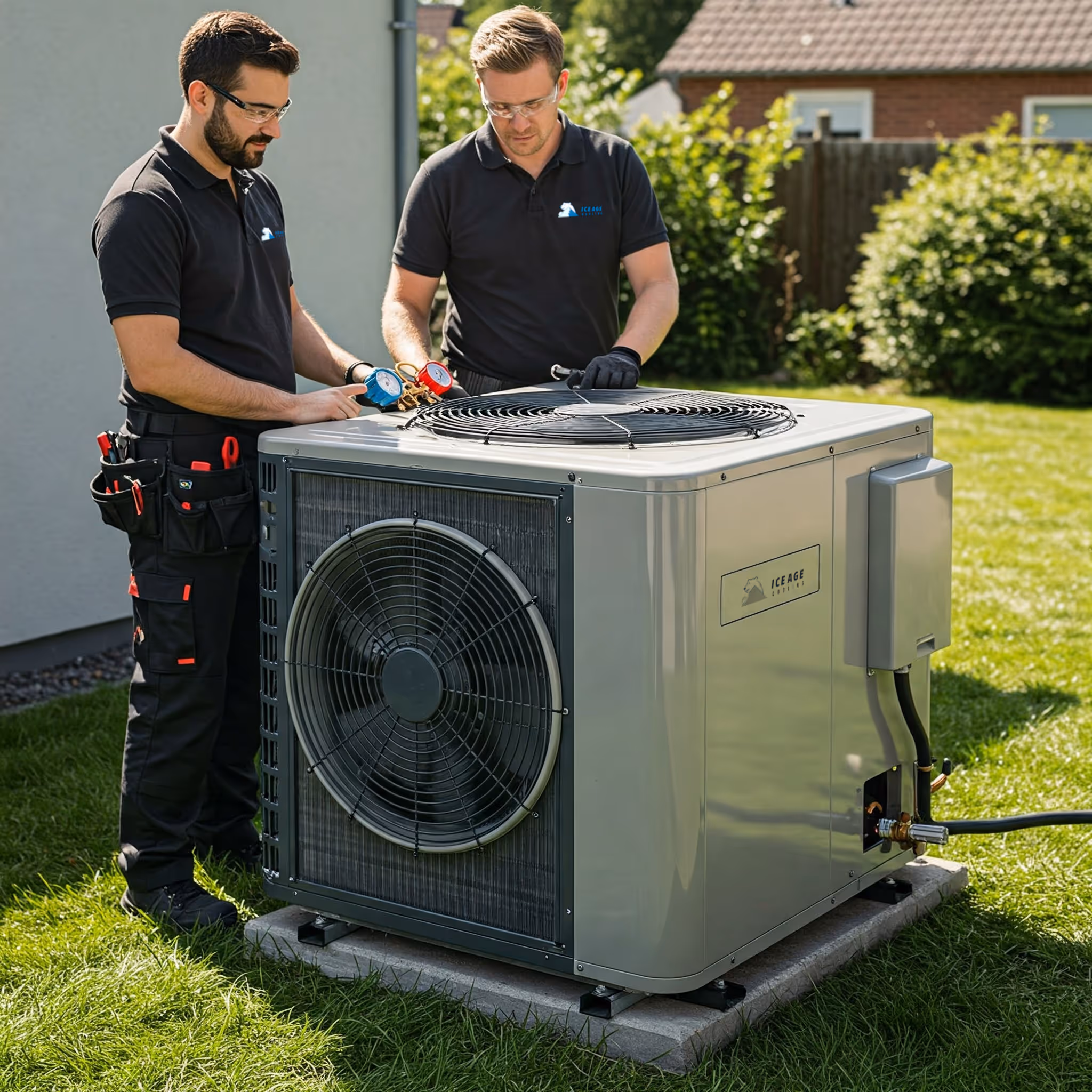

Outdoor Unit Placement:

• Airflow: Ensure ample space (at least 1-2 feet, sometimes more) around the unit, clear of walls, fences, dense vegetation, or other obstructions that could impede airflow.
• Shade: Placing the unit in a shaded spot (especially from afternoon sun) can reduce its workload and improve efficiency, though airflow must not be compromised. North or east sides of buildings are often preferred.
• Obstructions: Keep the area clear of leaves, grass clippings, toys, and debris. Avoid locations prone to heavy roof water runoff.
• Noise: Install away from bedroom windows, patios, or outdoor entertaining areas where noise could be a nuisance.
• Accessibility: Ensure technicians can easily access the unit for cleaning, service, and repairs.

Indoor Unit Placement:

• Central Location: Placing the indoor unit (air handler/furnace) centrally can help minimize duct lengths and improve air distribution efficiency. Basements, utility closets, or central closets are common locations.
• Accessibility: Avoid attics or tight crawlspaces that make maintenance difficult. Attics can also get very hot, potentially increasing the unit's workload.
• Heat Sources: Keep the indoor unit and thermostat away from direct heat sources like appliances or lamps, which can affect thermostat readings.

Regular Maintenance:

• Filter Changes: Regularly replace or clean air filters as recommended to maintain airflow and protect equipment.
• Coil Cleaning: Keep both evaporator and condenser coils clean from dust and debris buildup to ensure efficient heat transfer.

Applications

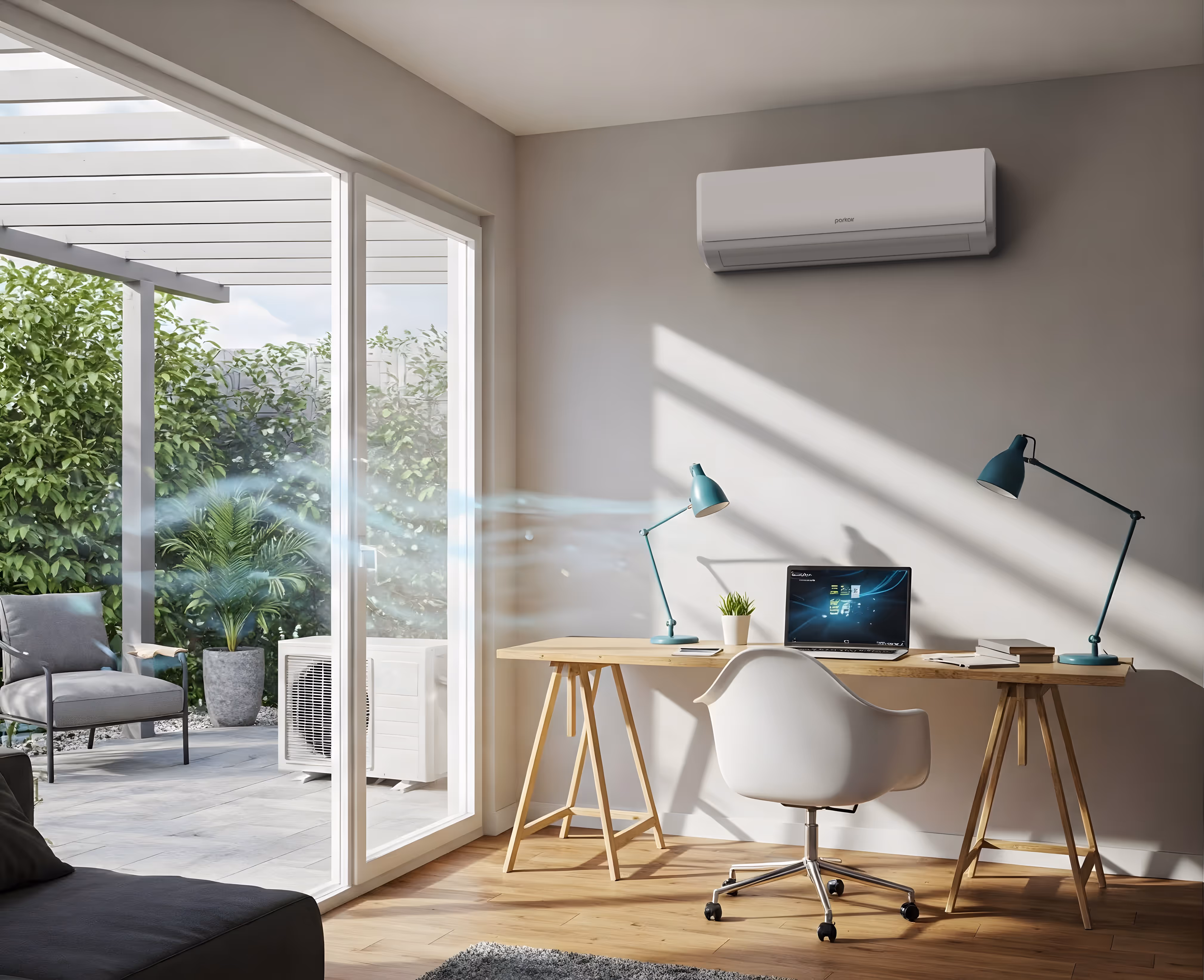

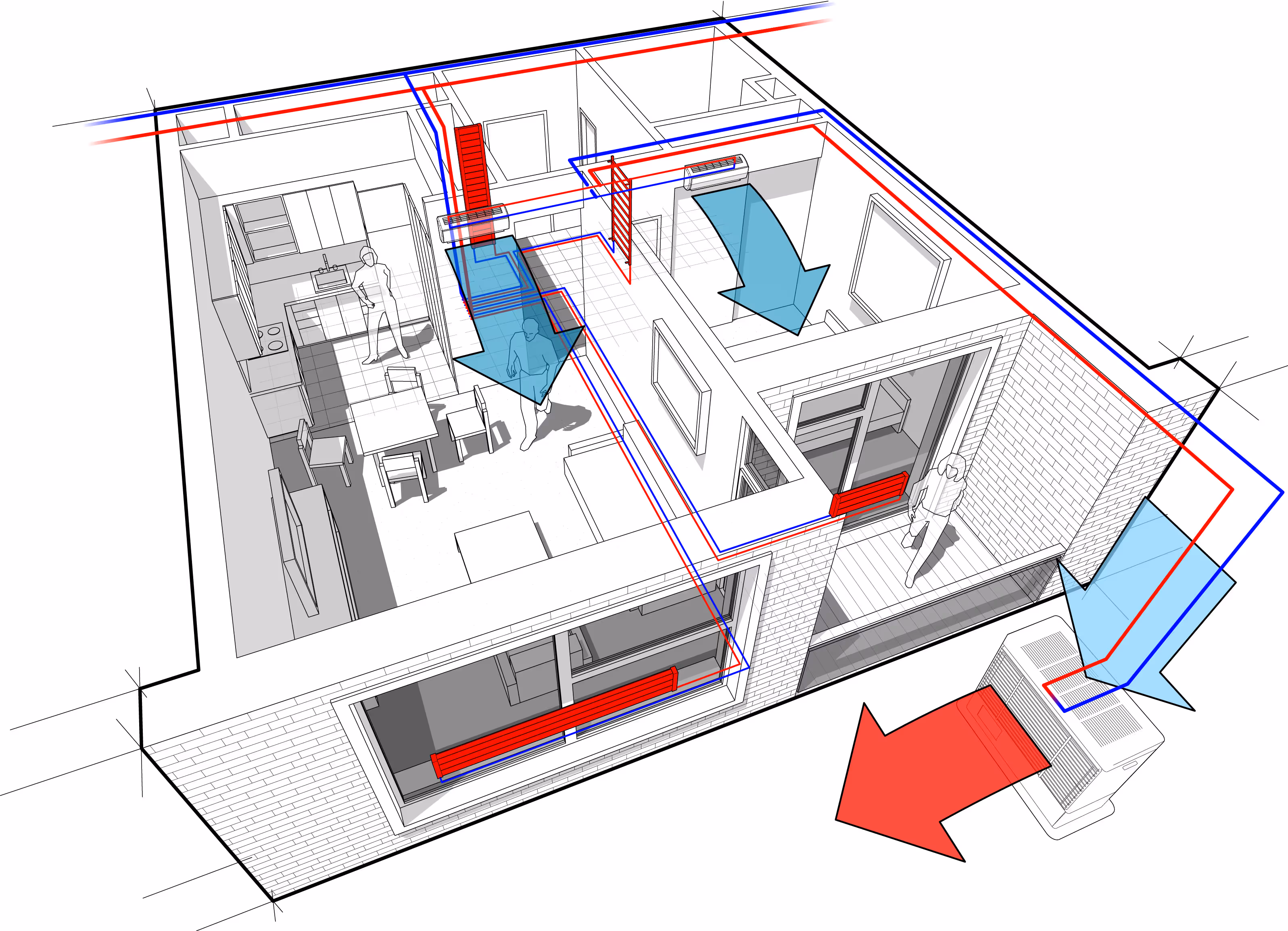

Air-cooled AC systems are highly versatile due to their reliance on readily available air. They are the standard choice for most residential applications, including single-family homes and apartments, often configured as split systems (separate indoor/outdoor units) or packaged units. They are also widely used in light commercial settings such as offices, retail stores, restaurants, and small workshops, utilizing systems like single-splits, multi-splits, packaged rooftop units, or VRF (Variable Refrigerant Flow) systems.
